Rigs and equipment matched to the well rather than to whatever is available. Every asset maintained and certified on a documented inspection cycle.
Our approach
Putting a 2,000 HP pad rig on a shallow vertical well costs you money. Putting an undersized rig on an extended lateral costs you the well. We will tell you which asset the programme actually needs - including when that is a smaller, cheaper one.
Drilling · 1,500 - 2,000 HP
AC variable-frequency-drive rigs with walking substructures, high-torque top drives and pad-optimised layouts for multi-well development.
| Hookload capacity | 750,000 - 1,000,000 lbs |
|---|---|
| Top drive | 500 - 750 ton, AC driven |
| Mud pumps | 3 x 1,600 HP triplex |
| Substructure | Walking / skidding, 30 - 35 ft clearance |
| Power | AC VFD with dual-fuel capability |
Drilling · 1,000 - 1,500 HP
Proven conventional rigs suited to shallower vertical and directional programmes where an AC pad rig is more capability than the well requires.
| Hookload capacity | 500,000 - 750,000 lbs |
|---|---|
| Top drive | 350 - 500 ton |
| Mud pumps | 2 x 1,300 HP triplex |
| Substructure | Conventional, 22 - 28 ft clearance |
| Depth rating | To 15,000 ft |
Well servicing · 250 - 600 HP
Purpose-built mobile service rigs for rod and tubing work, pump changes, fishing and completion operations on producing wells.
| Mast rating | 150,000 - 300,000 lbs |
|---|---|
| Configuration | Single and double, carrier mounted |
| Working depth | To 14,000 ft |
| Pressure control | 5M - 10M BOP stacks |
| Support | Integrated power tongs and rod handling |
Testing · Three-phase
Mobile separation and metering packages for flowback, clean-up and extended production testing, with continuous data acquisition.
| Separation | Three-phase, 1,440 psi rated |
|---|---|
| Metering | Oil, gas and water rate measurement |
| Sand management | Desanders and solids handling |
| Data | Continuous logging with remote access |
| Sampling | Surface and downhole PVT capability |
Support · 5M - 15M
BOP stacks, accumulators, choke manifolds and wellhead equipment maintained and certified on a documented inspection cycle.
| BOP stacks | 5,000 - 15,000 psi working pressure |
|---|---|
| Certification | Recertified to API 53 intervals |
| Testing | Function and pressure tested per programme |
| Accumulators | Sized to full stack function requirement |
Support · Rig moving
Rig-move trucking coordination, cranes, forklifts and rigging inspected and certified for critical-lift work.
| Crane capacity | Sized per engineered lift plan |
|---|---|
| Rigging | Inspected and certified on documented cycle |
| Transport | Managed heavy haul contractor network |
| Permitting | Multi-jurisdiction oversize permitting |
Specifications are indicative of fleet classes. Exact rig specifications, current availability and certification status are provided with every quotation.

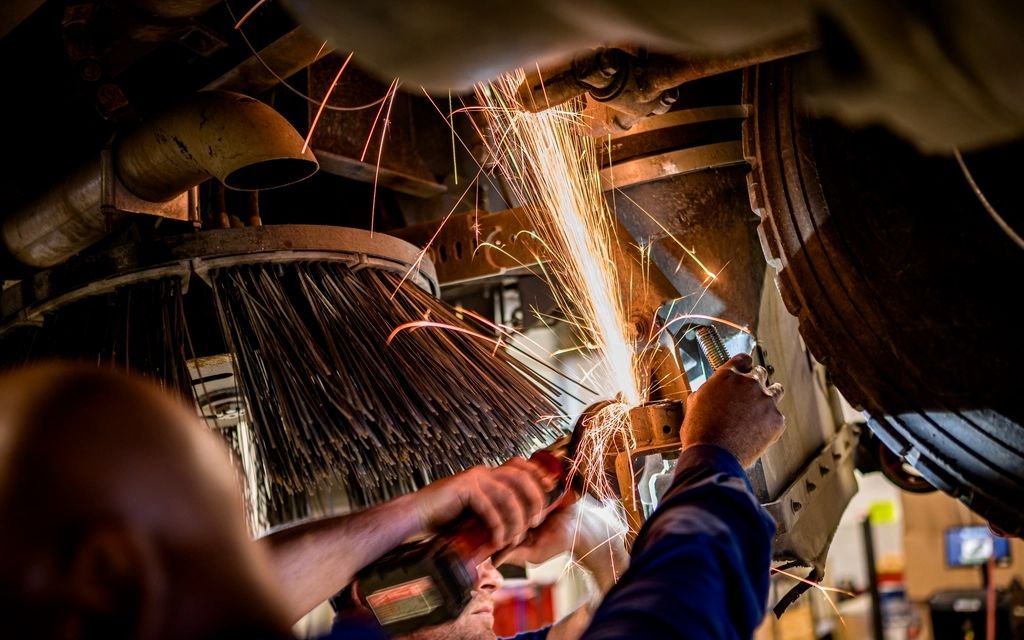

Maintenance
Deferred maintenance is the cheapest decision you make this quarter and the most expensive one you make this year.
Send us the depth, trajectory and spud date and we will come back with the right asset class, current availability and a cost.
Send us the location, depth and timing and you will get a costed response from someone who has worked the job - not a brochure.
